New Backhoe Loader

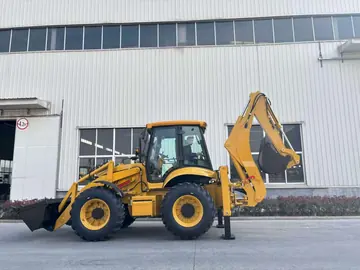

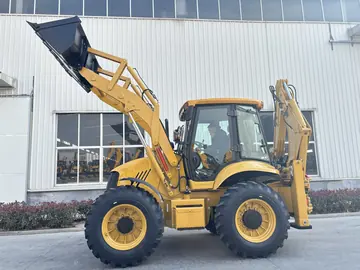

Terracub 388H Backhoe Loader
A 10,800 kg backhoe loader with a 1.2 m3 front bucket, 0.3 m3 rear bucket, 2,500 kg rated loading capacity, and up to 5,045 mm digging depth depending on configuration.
New388H10,800 kg1.2 m34WD / 4WSShandong, China
ConditionNew
Model388H
Operating Weight10,800 kg
Front Bucket1.2 m3
Drive / Steering4WD / 4WS
OriginShandong, China
Product Specifications
Operating Weight
10,800 kg
Overall Dimensions
6,554 x 2,543 x 3,660 mm
Wheelbase
2,293 +/- 10 mm
Wheel Tread
2,050 +/- 10 mm
Ground Clearance
475 mm
Front Bucket Capacity
1.2 m3
Rear Bucket Capacity
0.3 m3
Rated Loading Capacity
2,500 kg
Loader Breakout Force
47 kN
Backhoe Digging Force
49.8 kN
Bucket Unloading Height
3,153 mm
Bucket Unloading Distance
989 +/- 20 mm
Backhoe Swing Angle
180 degrees
Rear Bucket Unloading Height
4,285 / 4,923 mm
Maximum Digging Depth
4,102 / 5,045 mm
Maximum Traction Force
86 kN
Engine Options
Perkins, Weichai, or Yuchai; 4 cylinder
Rated Power Range
70-82 kW, configuration dependent
Transmission
Hydraulic synchronized gearshift, SPS 4WD 4WS
Gears
4 forward / 4 reverse
Steering
Hydraulic steering, +/- 36 degrees
Minimum Turning Radius
6,950 mm
Tyres
16.9-28 front and rear
Maximum Travel Speed
38 km/h
Loading Hydraulic Pressure
20 MPa
Excavation Hydraulic Pressure
20 MPa
Steering Hydraulic Pressure
14 MPa
Factory parameters are configuration-dependent and may change. Confirm the engine, boom, tyres, dimensions, and shipping specification on the final quotation.
Standard Configuration
02
Four-wheel drive and four-wheel steering transmission configuration
03

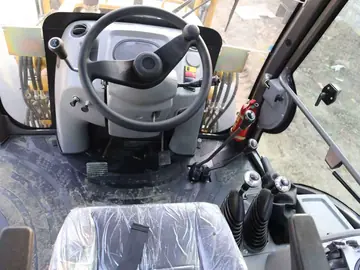

Mechanical controls
04
Hydraulic steering system
05
Enclosed cab with air conditioning
06
Standard front loader arm and standard rear excavator boom
Quote the correct configuration
Send your destination and working requirements.
We confirm engine option, boom configuration, attachments, loading method, and export terms before the order moves forward.
